Connecting Securely to Microsoft Azure Service with SFTP or FTPS

With WinSCP you can easily upload and manage files on your Microsoft Azure instance/service over SFTP protocol or FTPS protocol.

Before Starting

Before starting you should have WinSCP installed.

Advertisements:

Connecting to a Linux Virtual Machine with SFTP

First, collect information about your virtual machine instance, on the version of Azure portal, which you are using.

On the new Azure Portal portal.azure.com:

  • Host name:
    • Use IP address you find in the Public IP address section in the Essentials panel;
    • Or setup a DNS name for the virtual machine by clicking on the Public IP address section. A Configuration page of the IP address opens. There, in the DNS name label, enter a sub domain for your virtual machine. Click Save button. A full hostname now appears in the Public IP address/DNS name label section in the Essentials panel in a format subdomain.location.cloudapp.azure.com.
  • Username: Use the username, that you created, when creating the virtual machine.
  • Host key fingerprint: On the first connect you will be prompted to verify server host key.
    • You can locate key fingerprint in server’s initial start log, when host keys are generated.1) Use the Boot diagnostics page and search for -----BEGIN SSH HOST KEY KEYS-----:

      -----BEGIN SSH HOST KEY KEYS-----
      ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBOXBTK0rhHsOnu93hq/YsVBseEvu56WPkCwleBJb4QthaJ7j6Ih4O3dNJHkJ6xv8BxjeTNDoEnwOqJwHXbbmGWw= root@ubuntu
      ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAICv8CYlgCghyr1q+XdGJB560N9FuF4JY4ALHfkR/mktm root@ubuntu
      ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCqn2SnEPSysG2n/v3lzSTH/7GwpwhxIyRfp0wYRDu1cIizjyiD7m8GQI2R2OqBGnole/s5c1BkP9/QOTtLGZQVta5kCT8t6Ph7soe7ST8Ee7ok45648zEeKqf4tGfyFTlSJOtNWEh9qAlx79pL7rxC6QphWqYNFDPuTjPigwGsVhznTWry8OJZnJuSQCM07UDP+995yrJLqjZxY6StOMELILamcYO6XdoQvF/a1byVTQnbKO6Mdt8V+J+RY8ibNeYdAjfO1dQuUZIHwf8HiS5nD1+IzeiEH4V6Hr7uDCR+1V6rRj93x/NvPgM6T99urb5Br+GYZ4wVkAsZOTg3OFTT root@ubuntu
      -----END SSH HOST KEY KEYS-----


      Alternatively use Get-AzureRmVMBootDiagnosticsData command.
      Look for ECDSA key. The logged fingerprint of the key uses Base64-encoded SHA-256 hash of the key. While WinSCP uses hexadecimal-encoded MD5 hash of the key. To calculate the fingerprint in WinSCP format, execute this command in Windows PowerShell (after inserting the ssh-ed25519 key):

      Write-Host ([BitConverter]::ToString([Security.Cryptography.MD5]::Create().ComputeHash([Convert]::FromBase64String("AAAAC3NzaC1lZDI1NTE5AAAAICv8CYlgCghyr1q+XdGJB560N9FuF4JY4ALHfkR/mktm"))) -replace "-", ":").ToLower()

    • If you did not save the fingerprint on the first virtual machine, but you have another Azure virtual machine that you can connect to safely (you know its fingerprints), you can connect to the target instance using private IP from the trusted instance. Staying within a private Azure network keeps you safe from man-in-the-middle attacks. When on the trusted instance terminal, you can use the following commands to collect fingerprints:

      $ ssh-keyscan <target_instance_private_ip> > azurekey
      $ ssh-keygen -l -f azurekey -E md5
      2048 MD5:51:3b:ea:96:3d:3c:80:25:ae:b1:9c:a8:4c:76:82:09 <private_ip> (RSA)
      256 MD5:e5:27:88:a8:bc:f0:64:bb:3a:e7:71:e6:4d:a1:40:ed <private_ip> (ECDSA)
      256 MD5:cf:35:d4:78:43:48:26:bf:dc:96:f4:63:8e:ee:35:5b <private_ip> (ED25519)


    • If you do not have another trusted instance, you can create new temporary instance, just for the purpose of collecting the keys. First find keys for the new temporary instance, using its initial start log. Then collect keys of the target instance by connecting to it from the temporary instance. After that you can discard the temporary instance.
  • When creating new virtual machine, consider setting up public key authentication by pasting your public key to SSH public key box of the Configure basic settings steps. If you want to setup public key authentication later, you have to set it up manually.

On the old Azure Management Portal manage.windowsazure.com:

  • Host name: DNS name section on a Quick glance sidebar. Host name has a form name.cloudapp.net.
  • Username: Use username azureuser.
  • Host key fingerprint: SSH Certificate Thumbprint section. The thumbprint as shown on dashboard uses a slightly different format than a fingerprint used by WinSCP. Particularly the thumbprint does not include key type and size in the front and lacks colon separators. I.e. WinSCP’s fingerprint ssh-rsa 2048 aa:bb:cc… is equivalent to dashboard thumbprint aabbcc….
  • Consider setting up public key authentication.

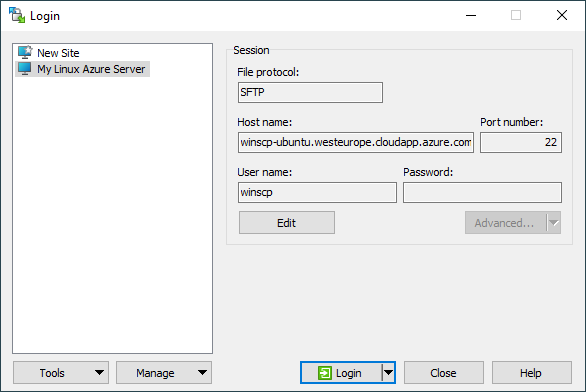

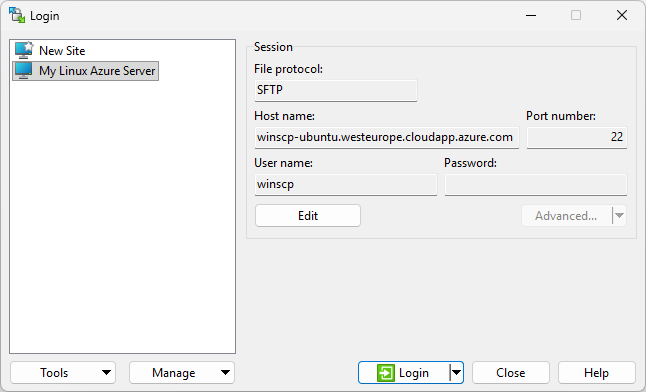

To connect to a virtual machine instance with SFTP, start WinSCP. Login dialog will appear. On the dialog:

  • Make sure New site node is selected.
  • On the New site node, make sure SFTP protocol is selected.
  • Enter Host name.
  • Enter User name.
  • Enter a password for the username. Or specify a private key, if you set up a public key authentication..
  • Save your site settings using the Save button.
  • Login using the Login button.
  • Verify the host key by comparing fingerprints with those collected before (see above).

Connecting to a Windows Virtual Machine with FTPS

First you need to install a FTPS server on the virtual machine.

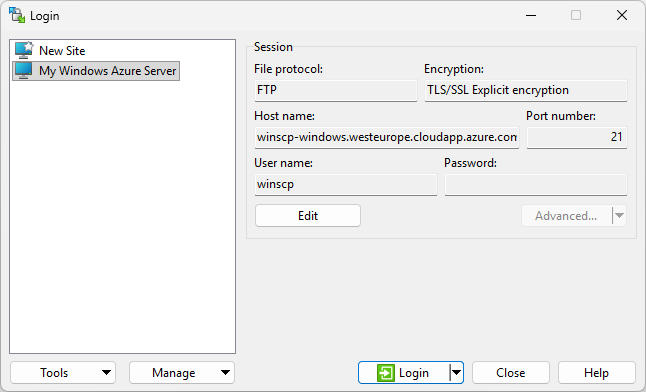

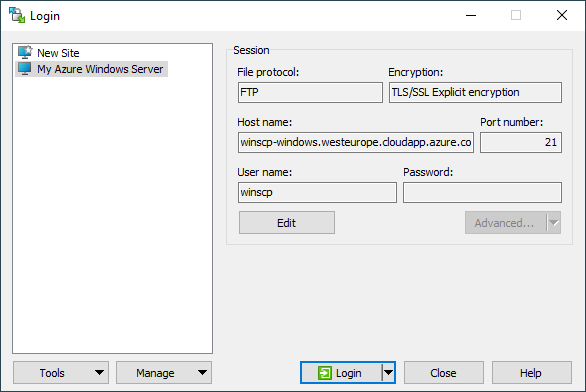

To connect to the virtual machine with FTPS, start WinSCP. Login dialog will appear. On the dialog:

  • Make sure New site node is selected.
  • On the New site node, select FTP protocol and TLS/SSL Explicit encryption.
  • In Host name box enter an address of your virtual machine:
    • For the new Azure Portal portal.azure.com:
      • Use IP address you find in the Public IP address section in the Essentials panel;
      • Or setup a DNS name for the virtual machine by clicking on the Public IP address section. A Configuration page of the IP address opens. There, in the DNS name label, enter a sub domain for your virtual machine. Click Save button. A full hostname now appears in the Public IP address/DNS name label section in the Essentials panel in a format subdomain.location.cloudapp.azure.com.
    • On the old Azure Management Portal manage.windowsazure.com: Use hostname in format name.cloudapp.net. You will find it in DNS Name section on Quick glance sidebar of your virtual machine dashboard.
  • Enter username and password of an account you want to connect with. Use the account you have specified when creating the instance or any other account you have created on the instance.
  • Save your site settings using the Save button.
  • Login using the Login button.
  • If you are using self-signed certificate, you will be prompted to accept it.

Connecting to a Web Site with FTPS

First, collect information about your web site, on the version of Azure portal, which you are using.

On the new Azure Portal portal.azure.com:

  • Host name: Copy host name from FTPS hostname section on the Essentials panel.
  • User Name: Copy username from the FTP/deployment username section on the Essentials panel. If you did not set up an FTP account yet, use Deployment credentials page. User name has a form name\user. You need to use both parts when authenticating.

On the old Azure Management Portal manage.windowsazure.com:

  • Host name: Copy host name from FTPS host name section on a Quick glance sidebar.
  • User Name: See Deployment / FTP user section. If you did not set up an FTP account yet, use Set up deployment credentials link. User name has a form name\user. You need to use both parts when authenticating.

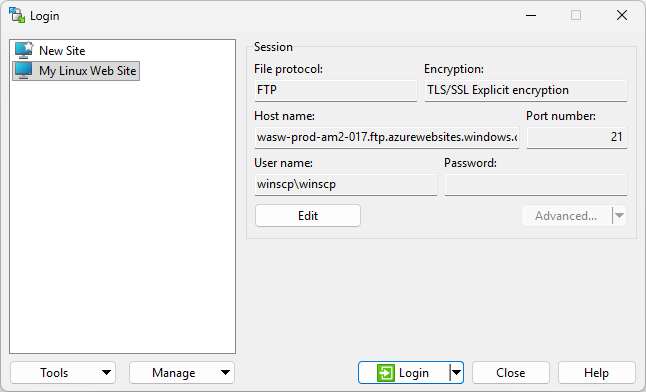

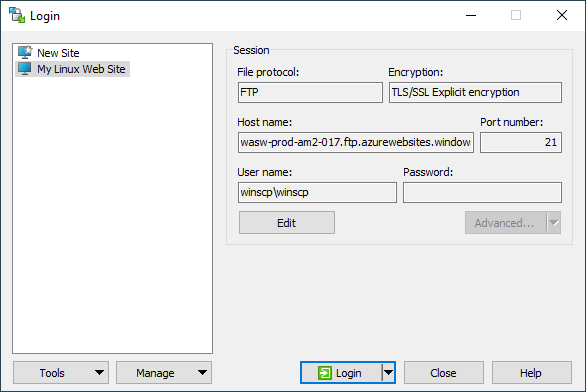

To connect to the web site with FTPS, start WinSCP. Login dialog will appear. On the dialog:

  • Make sure New site node is selected.
  • On the New site node, select FTP protocol and TLS/SSL Explicit encryption.
  • In Host name box paste a host name of your instance in format waws-prod-xxx-xxx.ftp.azurewebsites.windows.net. You can also paste a complete URL to select protocol, encryption and insert host name at once.
  • Enter the User name and the Password.
  • Save your site settings using the Save button.
  • Login using the Login button.
  • Web site TLS/SSL certificate is signed by a trusted authority, so you won’t be prompted to verify it.

Automating Access to the WebSite

Further reading

1) Using cloud-init script.
