Generate Session URL/Code/Transfer Code Dialog

Use the URL tab to generate a session URL or a file URL. The tab is not available when generating a file transfer code.

The generated URL always includes a protocol and a host name portions. Other parts can be included optionally.

Check the User name to include username into the URL. The option is not available when the dialog is opened from the Login dialog and the user name was not specified; or (rarely) when the current session did not require the user name.

Check the Password to include password into the URL. Make sure you protect an URL that includes the password appropriately. The option is not available when the dialog is opened from the Login dialog and the password was not specified; or when the current session does not use a password authentication; or when the password was not stored nor remembered.

Check the Initial directory to include an initial remote directory into the URL. When the dialog is opened from the Login dialog, Remote directory as specified on the Advanced site settings dialog is used. When opened from the main window, the current working remote directory is used. The option is not available when generating an URL for selected file(s) as a path to the file(s) is used instead.

Check the SSH host key to include an SSH host key fingerprint into the URL. The option is available for an SFTP and an SCP (SSH-based) sessions only. The option is not available, if no session was opened to the host as the host key is not known yet. Note that some (most) SSH clients need not understand a session URL that includes the host key fingerprint.

Check the WinSCP-specific to generate an WinSCP-specific URL. Note that you need to enable the option with the WebDAV protocol, if you want WinSCP to handle the URL, as WinSCP never registers for the http protocol.

Check the Save extension to include a save extension into the URL. As the extension is WinSCP-specific, the option WinSCP-specific should be selected along.

Check the Advanced settings to serialize all advanced site settings into the URL. As the generated syntax is WinSCP-specific, the option WinSCP-specific should be selected along.

The generated URL(s) is shown in the bottom box. When generating an URL for a site, only one URL is displayed. When generating an URL for a selected file(s), one URL per a file is displayed.

open sftp:H10262P1:T(_c309qQxCZS%)%2oa7@duravit-filestorage.sohorsys.fr:22

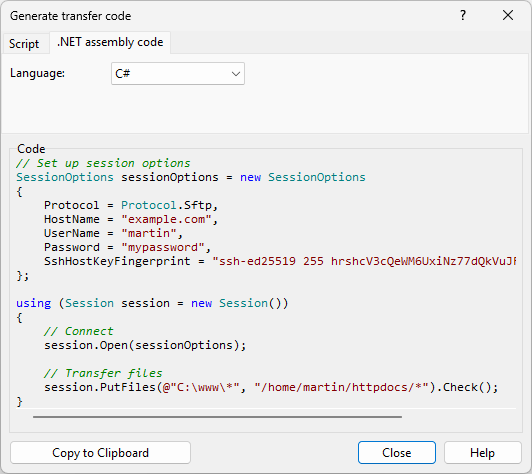

Use the .NET assembly tab to generate a code template using WinSCP .NET assembly for the session or the file transfer.

• Set up SessionOptions with all properties needed to configure the session.
• Create Session instance.
• Open the session using Session.Open
• (When generating a code for a session) Include a placeholder text to be replaced with calls to Session methods.
• (When generating a code for a file transfer) Transfer files using Session.PutFiles or Session.GetFiles. The TransferOptions class instance will be constructed and set up, if any non-default transfer settings are used. The OperationResultBase.Check method will be called on results of the methods to throw an exception on any error.
  • If you had all files selected in the source panel, a code to upload all files from the source directory will be generated.
  • If you had only some files selected in the source panel, a code to upload only the selected files (but three at most) will be generated. If file names contain any file mask special characters, the RemotePath.EscapeFileMask method will be called to escape them.
• Dispose the Session instance.

Use the Language to select a language to generate the template for. Available languages are C#, VB.NET and PowerShell.

Use Copy to Clipboard to copy generated URL(s) or code to a clipboard.

WinSCP GUI cannot be aware of path limitations of your server. So even if your server requires you to start in a specific folder, WinSCP will not generate a code that will start in that folder. You need to add that manually. See How to connect to a server that does not allow an access to the root path?//
