File panel is the most important part of the interface. Using it the user can select the files to work with. There is panel listing files in current remote directory in both interfaces. The Commander interface has also panel listing files in current local directory.
- Selecting Files
- Selecting Columns
- Directory Tree
- Sorting Files
- Path Label
- Panel Toolbars
- View Style
- Special Files
Method for selecting files differs with interface your are using.
- Selecting files in Commander interface
- Selecting files in Explorer interface is the same as you know from Windows Explorer.
Commands for selecting files are available from Mark menu.

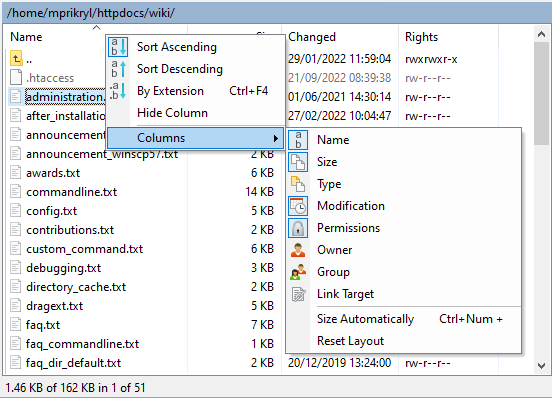

In the Commander interface and in details view of the Explorer interface, the file panels shows several column containing information about the files. User can select which columns should be displayed and their order.
|Size||Both||File size. Display format of the size column can be set in preferences.|
|Type||Both||Description of the file type (if known).|
|Changed||Both||Time of the last modification of the file.|
Usually three groups of three letters. The first group for owner, the second for group and the last for others (so called world).
With FTP protocol: If the server does not support UNIX-style permissions, permissions can be displayed in format defined by RFC 3659 (Perm fact).
With WebDAV protocol: UNIX-style permissions are not supported. Locked keyword or 🔒 (lock icon) is displayed for locked files. Executable keyword or ⚙ (gear icon) can be displayed for executable files.1 This feature is available only in the latest beta release.
|Link target||Remote||Target of symbolic link (symlink).|
To change column order, drag the column title. To change column width, drag the separator between the column titles.
Note that the SFTP servers may not provide all file attributes in directory listing (like owner and group). To force WinSCP to explicitly request them, invoke Properties dialog.
Optional component of the file panel is directory tree. You can use it to change current directory. You can also copy/move directories it shows using drag&drop or drop files and directories on it.
On startup, remote directory tree shows only all parent directories of the initial remote directory. As you visit other directories, content of the tree is being filled.
Files in panel can be sorted by value of any column. To sort the list click on column title by which you can sort the files. To reverse the ordering, click on the same column title again. Note that there are no titles in the Explorer interface in icon view.
Files displayed in panel can be filtered.
In Commander interface there is path label over each panel. It shows path to current directory. You can click on any component of the path to open that directory. You can double-click the path label outside the path as shortcut to bookmark window. If filtering is enabled, current filter is shown next to the path.
In Explorer interface you can change view style of the file panel. The styles are the same as you know from Windows Explorer: large icons, small icons, list and details. To change style use View menu or toolbar icon.
The Commander interface allows only details view for both panels.
At some files you can see special overlay image on their icon. There are tree types:
- Arrow on the white square - Symbolic link (remote panel) or shortcut (local panel).
- Arrow on the red square - Broken symbolic link (remote panel only).
- Torn sheet (or file) - Partial file (remnant of an interrupted transfer).
Some files are rendered in gray color. It denotes hidden file, i.e. the file that should not be generally visible to user. Thus WinSCP by default does not show such files. You can display them using Show hidden files on Panels page of Preferences dialog. If some files are hidden, their number is indicated on status bar. Note that with FTP protocol some servers do not list hidden files when
MLSD command is used. You may need to disable
MLSD to switch to
LIST and make sure that
-a switch is used.
